pH Electrode for Beer Analysis

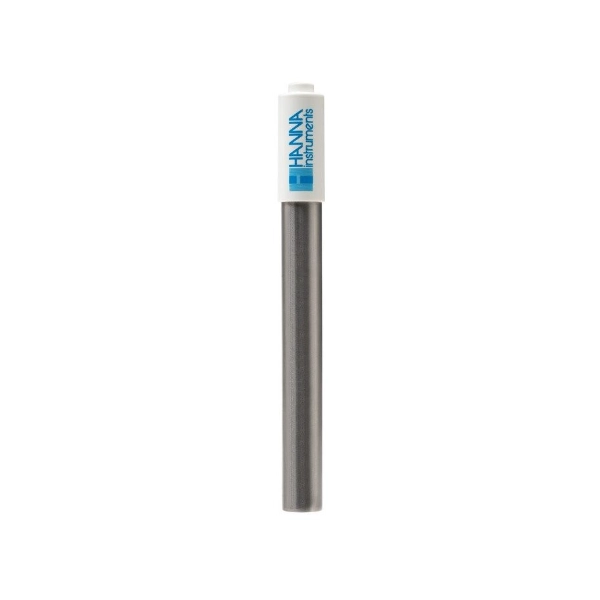

The FC2143 pH electrode is a flat tip pH sensor made with specialising glass to provide a long life when measuring temperatures up to 80°C. A built in temperature sensor compensates for temperature variations. The probe has a built in amplifier and a titanium body that acts as a matching pin to reduce noise as a result from the effect that humidity has on probe connection to the meter. The FC2143 connects to the HI-98167 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.

Titanium Body

A pH measurement is a very sensitive voltage measurement that is susceptible to interference. To reduce this susceptibility, the titanium body serves as a matching pin. A matching pin is a differential measurement technique used to eliminate electrical noise in the measurement system.

Flat tip pH sensor

The flat tip sensor allows for easy cleaning of the pH sensing surface as solids, from mash and cooled wort collect on the surface.

Quick-Connect DIN

This secure waterproof connector allows for a single cable to be used for both pH and temperature measurements.
