MCE Membrane Filters, 0.45 Micron, 47mm, White, Sterile, Gridded

Code: A045H047Y-200

Variation ID		Product Code	Pack Size	List Price	Qty
24075	photo_camera	A045H047Y-200	200 Pack A045H047Y-200	£150.08

Pack: 200 Pack

£150.08

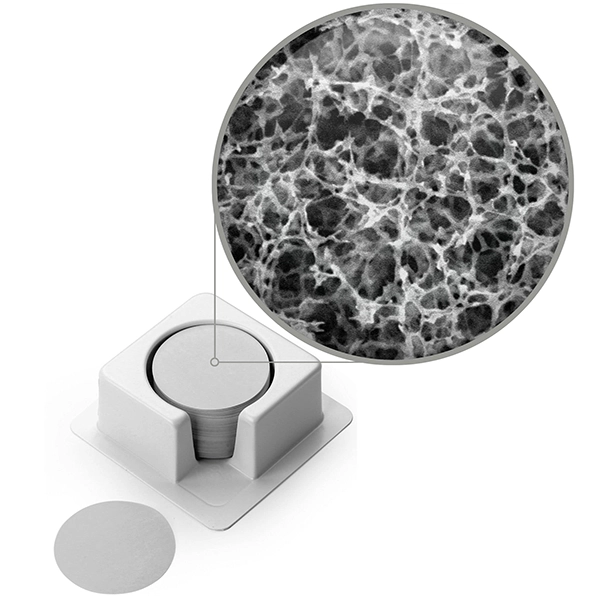

Advantec's sterile, white, gridded, Mixed Cellulose Esters (MCE) membranes--a versatile mixture of cellulose nitrate and cellulose acetate fibers--are general purpose filters with high recovery rates, high porosity, and superior flow rates. These pre-sterilised filters are suited for single use in many microbiological applications, including the examination of water, wastewater, pharmaceuticals, food, and beverages. The grid-lines on the membrane's surface eliminate eye-fatigue during colony-counting and the white surface allows color reactions to be easily observed.

Hydrophilic MCE membranes utilize a mixture of cellulose nitrate/acetate fibers to deliver superior flow rates, precise pores, and high protein binding capacity; ideal for particle monitoring, diagnostic kit manufacturing, and microbiology applications.

Key Features

Hydrophilic membrane with high protein binding
Uniform pore structure and consistent thickness
Superior flow rates and precise pore size
Sterile
White
Gridded

MCE Filters in Microbiological Applications

Many microbiological techniques include colony counting after incubation as the standard method of quantification. Gridded filters have clearly defined grid lines spaced at 3.1 mm intervals. The special ink used is nontoxic and completely free from bacterial growth inhibitors. White gridded disks are designed for the recovery and retention of E. Coli bacteria in water/waste-water analysis as well as other microbiological tests. Black mixed cellulose esters(MCE) are available plain for automatic colony counting applications, as well as gridded to assist in manual counting procedures. Black MCE membranes provide contrast between residue or cell colors and the filter without having to counter-stain the membrane.

Water and Wastewater Industry:
Capturing/culturing microorganisms using the MF Technique

Test Method 9222 B: Total Coliforms (0.45 µm)
Test Method 9222 D: Fecal Coliforms (0.45 µm)
Test Method 9230 C: Fecal Coliforms (0.45 µm)
Test Method 9215 D: Total Bacteria (0.20 µm/0.45 µm)
Test Method 9260 B: Salmonella (0.45 µm)
Test Method 9213: Pseudomonas sp (0.20 µm)
Test Method 9213 E: Psedomonas aeruginosa (0.80 µm)

Manufacturer: Advantec
Pore Size: 0.45
Diameter (mm): 47mm
Grid: Gridded
Pad: No
Sterile: Yes

USP Class VI Testing	Passed
BSA Protein Binding	~160 μg/cm²
Extractables	<4%
Max. Operating Temp	130 °C (266 °F)
Sealing Compatibility	Ultrasonic, Heat, Radio Frequency, and Insert Molding
Nominal Thickness	150 µm

Performance by Pore Size

	Air Flow Rate¹	Water Flow Rate²	Bubble Point (psi)³
0.10 µm	0.67	2.7	35.3
0.20 µm	2.4	17.5	54.5
0.45 µm	5.0	45.0	35.0
0.65 µm	11.2	120.0	21.3
0.80 µm	15.0	165.0	16.4
1.00 µm	20.4	220.0	13.9
3.00 µm	28.3	300.0	10.2
5.00 µm	40.9	400.0	8.5
8.00 µm	65.0	NA	4.0

*Notes:
1. Airflow measured as L/min·cm² at 10psi differential pressure
2. Water flow measured as mL/min·cm² at 10psi differential pressure
3. Bubble point for 0.1µm pore size measured using 100% IPA. All others measured using purified water.

HS Code / Commodity Code: 8421900040
