pH electrode, Edge Digital, Glass, Refillable, Matching Pin.

Code: HI-11311
  Pack Size List Price Qty
photo_camera 1 Pack
HI-11311
£257.50
Pack: 1 Pack

£257.50

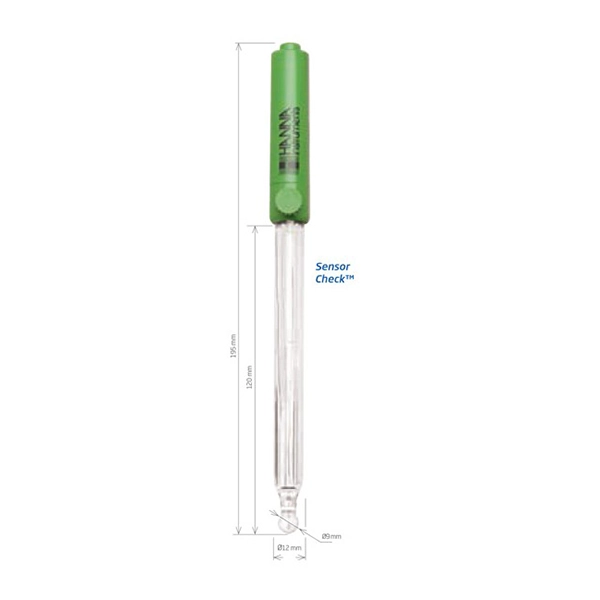

HI-11311 pH Edge Electrode with Sensor Check™

The HI-11311 is a smart pH electrode with Sensor Check™ for use with the HI-2020 Edge hybrid meter. Ideal for use in the beer industry, in laboratories and general purpose use.

Key Features

  • 3.5mm Connection for Edge series meters
  • Internal microchip for callibration and sensor information.

The HI-11311 electrode features a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by Edge once the electrode is plugged in.

Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.

The HI-11311 features an easy to plug in 3.5mm connector and is recommended for use in laboratories and as a general purpose pH electrode.

When HI-11311 is used with Edge the impedance of the pH measuring electrode is checked in real-time to notify you in the event of glass breakage. During calibration Sensor Check™ technology checks the state of the junction. The reference junction is also evaluated and reported on the display.

3.5 Connection – Phono plug electrode connection used on HANNA smart Edge electrodes. Provides a secure, easy-to-use connection.

All electrodes and probes have 6 months warranty.

Description refillable, combination, digital pH electrode with Sensor Check™
Reference double, Ag/AgCl
Junction ceramic, single/ 15-20 uL/h
Electrolyte KCI 3.5M
Max Pressure 0.1 bar
Range pH: 0 to 13
Recommended Operating Temp. -5 to 100°C
Tip/Shape spheric (dia: 9.5mm)
Temperature Sensor yes
Matching Pin yes
Amplifier yes
Body Material glass
Cable 1m
Recommended Use Laboratory, general purpose, beer
Connection 3.5mm Connector
