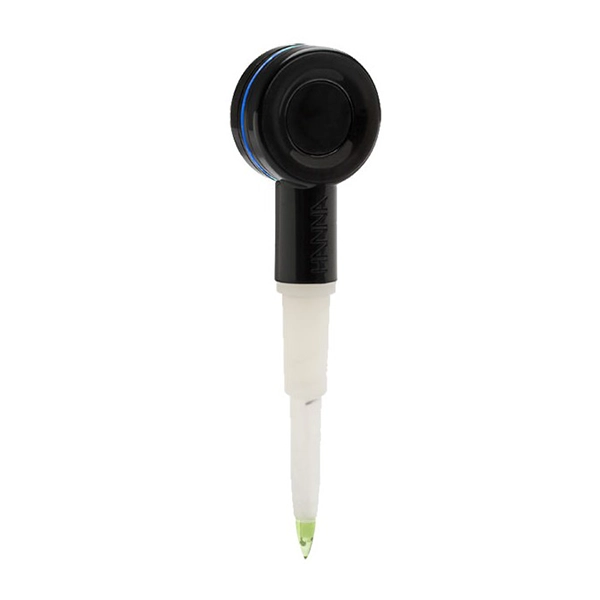

HALO PVDF body pH Foodcare Electrode with Bluetooth

Code: FC2022

Variation ID		Product Code	Pack Size	List Price	Qty
13632	photo_camera	FC2022	1 Pack FC2022	£297.45

Pack: 1 Pack

£297.45

General
Specification

The FC2022 is a pH electrode that incorporates Bluetooth Smart (Bluetooth 4.0) wireless technology with an application specific design. The electrode’s features make it ideal for measuring food related products such as dough, dairy, minced meats and semi-solids. Features include: low temperature (LT) glass, conical bulb, food grade PVDF body, and an open junction with viscolene gel electrolyte.

No need for a pH meter
Free to use Hanna Lap App for iPad
Flexible, accurate and easy to use
Battery operated

Hanna Lab App

The first app that turns an iPad and mobile phone into a full-featured pH meter!

The Hanna Lab App turns an iPad or mobile phone into a full-featured pH meter when used with the Hanna HALO pH electrode with Bluetooth smart technology. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data or as a graph. The graph can be planned and zoomed with the iPad's pinch-to-zoom technology for enhanced viewing.

Connecting a HALO probe to the Hanna Lab App is simple. Tap the Bluetooth icon in the top-right corner to view all available HALO probes then press the button on your HALO probe. The blue halo on the probe will start blinking indicating that it is in discovery mode. Select the newly discovered HALO probe from the list of available probes. If a previously associated probe is visible when the app is opened, it will connect to that probe automatically.

Connects to HALO via Bluetooth 4.0
Up to five-point pH calibration with seven standard pH buffers available
Calibration reminder
pH and temperature updated every second
Basic and full GLP
Fluid, dynamic graphing
Measurement alarms Alerts you if the measurement threshold is exceeded
One button sample tagging
Data-logging with custom annotations
Share data via email in CSV format
Help and tutorials

Reference	-	single, Ag/AgCl

Junction	-	open

Electrolyte	-	viscolene

Range	-	0 to 12 pH

Tip Shape	-	conic (6 x 10mm)

Diameter	-	6mm

Overall Length	-	134mm

Environment	-	0.0 to 50.0°C, electronic module is not waterproof

Recommended Operating Temperature	-	0.0 to 60.0°C

Temperature Sensor	-	yes

Body Material	-	PVDF

Connection	-	Bluetooth® Smart (Bluetooth 4.0), 10m range

Battery Type/Life	-	CR2032 3V lithium ion/approximately 500 hours

Hanna Lab App Specifications Range		-2.000 to 16.000 pH; ±800mV; -20.0 to 120.0°C

Accuracy (@25°C)	-	±0.005 pH; ±0.3 mV; ±0.5°C

Calibration Points	-	up to five-point calibration with seven standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH)

Temperature Compensation	-	automatic from -5.0 to 100.0°C

Compatibility/System Requirements	-	Hanna Lab App works with iPad 3rd generation or newer (including iPad mini) with Bluetooth 4.0 technology and iOS 7.1 or newer
