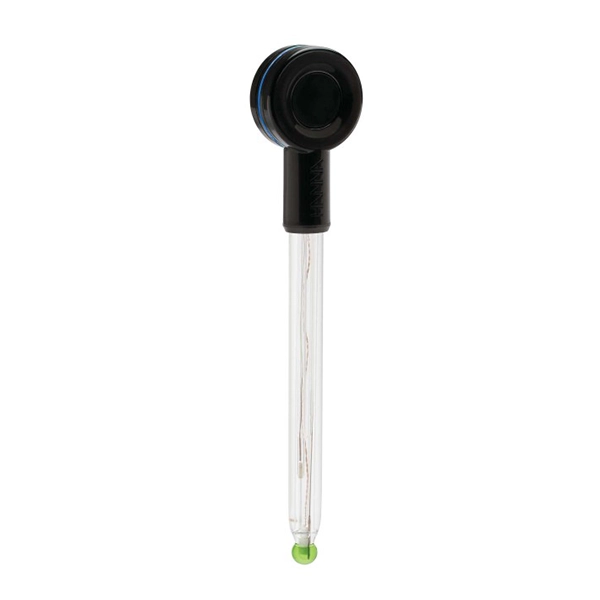

HALO Glass body Gel Filled pH Electrode with Bluetooth
Code: HI-11102
Revert
| Variation ID | Product Code | Pack Size | List Price | Qty | |
|---|---|---|---|---|---|
| HI-11102 | 1 Pack | £271.40 |
Revert
Pack: 1 Pack
£271.40
The HI-11102 HALO is a pH and temperature electrode which incorporates a Bluetooth transmitter to wirelessly connect to an iPad or the Hanna Edge-Blu pH tablet meter.
Hanna Lab App
The first app that turns an iPad into a full-featured pH meter!
The Hanna Lab App turns an iPad into a full-featured pH meter when used with the Hanna HALO pH electrode with Bluetooth smart technology. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data or as a graph. The graph can be planned and zoomed with the iPad's pinch-to-zoom technology for enhanced viewing.
Connecting a HALO probe to the Hanna Lab App is simple. Tap the Bluetooth icon in the top-right corner to view all available HALO probes then press the button on your HALO probe. The blue halo on the probe will start blinking indicating that it is in discovery mode. Select the newly discovered HALO probe from the list of available probes. If a previously associated probe is discoverable when the app is opened, it will connect to that probe automatically.
Connects to HALO via Bluetooth 4.0 Up to five-point pH calibration with seven standard pH buffers available Calibration reminder pH and temperature updated every second Basic and full GLP Fluid, dynamic graphing Measurement alarms Alerts you if the measurement threshold is exceeded One button sample tagging Data-logging with custom annotations Share data via email in CSV format Help and tutorials
Bluetooth Connection – Wire free data transmission using Bluetooth 4 low power technology. Compatible with the HANNA Edge Blu meter, and also allows transmission of pH and temperature data to your mobile phone or tablet in conjunction with the free HANNA Lab App.
All electrodes and probes have 6 months warranty.
| Reference | - | double, Ag/AgCl |
| Junction | - | ceramic, single |
| Electrolyte | - | gel |
| Range | - | 0 to 12 pH |
| Tip Shape | - | spheric |
| Diameter | - | 12mm |
| Overall Length | - | 183mm |
| Environment | - | 0.0 to 50.0°C, electronic module is not waterproof |
| Recommended Operating Temperature | - | -5.0 to 80.0°C |
| Temperature Sensor | - | yes |
| Body Material | - | Glass |
| Connection | - | Bluetooth Smart (Bluetooth 4.0), 10m range |
| Battery Type/Life | - | CR2032 3V lithium ion/approximately 500 hours |
| Hanna Lab App Specifications | - | Range: -2.000 to 16.000 pH; ±800mV; -20.0 to 120.0°C |
| Accuracy (@25°C) | - | ±0.005 pH; ±0.3 mV; ±0.5°C |
| Calibration Points | - | up to five-point calibration with seven standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH) |
| Temperature Compensation | - | automatic from -5.0 to 100.0°C |
| Compatibility/System Requirements | - | Hanna Lab App works with iPad 3rd generation or newer (including iPad mini) with Bluetooth 4.0 technology and iOS 7.1 or newer |
